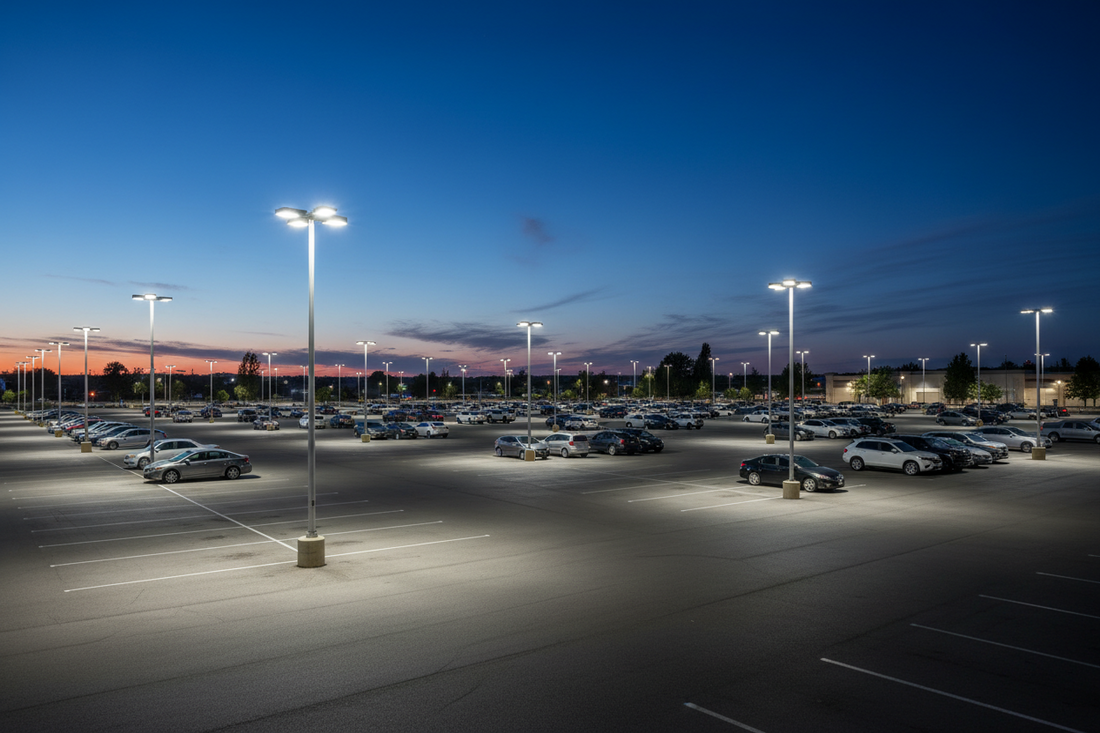

The Commercial Parking Lot Lighting Guide: Balancing Lumens and Voltage Requirements

For electrical subcontractors, general contractors, and commercial property managers, designing or retrofitting an exterior lighting layout isn't about throwing up the brightest fixtures possible. It is a precise engineering balancing act.

Over-illuminating a parking lot wastes thousands in utility overhead and creates severe light pollution (spill light) that violates municipal dark-sky ordinances. Conversely, under-illuminating a lot creates dangerous dark spots, increases property liability, compromises security camera recording clarity, and fails local building codes.

To achieve maximum safety, uniform coverage, and energy efficiency, commercial procurement teams must carefully balance lumen output, mounting heights, layout density, and voltage parameters (120V–277V vs. 347V–480V).

Save Up to 15% on Commercial Bulk Orders & Project Allocations

Are you sourcing fixtures for a multi-family complex, retail plaza, or hotel renovation? Avoid retail markups and deal directly with our Phoenix B2B trade desk.

Order Tier	Order Volume	Trade Discount	Included Commercial Benefits
Tier 1 (Contractor)	19 – 49 Fixtures	5% OFF	Dedicated B2B Logistics Tracking
Tier 2 (Commercial)	50 – 99 Fixtures	10% OFF	Priority Freight + Custom Voltage Pre-Config
Tier 3 (Enterprise)	99+ Fixtures / Projects	15% OFF	Dedicated Account Manager + Deferred B2B Invoicing



Featured Product Series: Lush Atlas Heavy-Duty LED Shoebox (150W–450W) * 150W Atlas LED: Ideal for 12ft–16ft poles
* 300W Atlas LED: Premium high-density output for 20ft–25ft poles
* 450W Industrial Atlas LED: Maximum lumen coverage for 30ft–40ft+ poles

[Click Here to Lock In Commercial Bulk Pricing & Request a Custom Quote]

The Core Technical Metrics: Understanding Foot-Candles and Lumens

Before selecting fixtures, you must understand how light output translates to ground surface illumination.

Lumen Output: The total amount of light emitted directly by the LED source.

Foot-Candles (FC): The actual measurement of light intensity reaching the ground surface. One foot-candle equals one lumen per square foot.

Commercial Foot-Candle Benchmarks

* Standard Commercial Parking Lots: Requires an average of 1.5 to 2.5 FC across active parking lanes.

* High-Security & High-Traffic Areas (Banks, Retail, Hotel Entrances): Requires an average of 3.0 to 5.0 FC.

* Perimeter & Low-Traffic Zones: Should not drop below 0.5 to 1.0 FC to ensure complete security camera visibility.

Balancing Mounting Height, Spacing, and Wattage

A common mistake in commercial retrofits is replacing old Metal Halide (MH) or High-Pressure Sodium (HPS) heads with equivalent LED wattages on a 1:1 basis without analyzing pole height and distribution optics.

Pole Height	Recommended LED Wattage	Lumen Output Range	Target Pole Spacing	Primary Application
12ft – 16ft	150W LED (Replaces 400W MH)	21,000 – 22,500 LM	40ft – 50ft Apart	Commercial Driveways, Walkways, Small Retail
20ft – 25ft	200W – 300W LED (Replaces 750W MH)	28,000 – 42,000 LM	60ft – 70ft Apart	Standard Commercial & Hotel Parking Lots
30ft – 40ft+	450W LED (Replaces 1000W+ MH)	63,000+ LM	80ft – 100ft Apart	Regional Shopping Centers, Logistics Depots, Stadiums

Voltage Selection: Low Voltage (120V–277V) vs. High Voltage (347V–480V)

When sourcing commercial shoebox fixtures, verifying the property's existing supply line voltage is mandatory prior to issuing a Purchase Order.

Standard Commercial Voltage (120V–277V): The most common universal driver setup found in light-commercial, hospitality, and retail properties.

High-Voltage Industrial Lines (347V–480V): Frequently used in heavy industrial complexes, large logistical centers, and municipal infrastructures. High-voltage systems draw lower amperage, allowing longer wire runs without significant voltage drop.

Professional Electrical Subcontractor Note: All Lush Atlas Heavy-Duty LED Parking Lot Lights feature industrial-grade Surge Protection Devices (10kV/20kV SPD) to guard internal drivers against line spikes and localized lightning events.

[Download Official Lush Atlas LED Shoebox Specification Sheet PDF]

Sourcing the Solution: Lush Atlas Heavy-Duty Series

The Lush Atlas Series is engineered specifically for commercial general contractors, civil installers, and property asset managers.

Lush Atlas 150W Heavy-Duty LED Shoebox: $139.99 USD (Ideal for 15ft–20ft poles)

Lush Atlas 300W Heavy-Duty LED Shoebox: Premium Output (Ideal for 25ft–30ft high-density lots)

Lush Atlas 450W Industrial LED Shoebox: Maximum Lumens (Ideal for 35ft+ heavy commercial applications)



Note: Aggregate volume pricing and corporate trade accounts save an additional discount on commercial orders.
