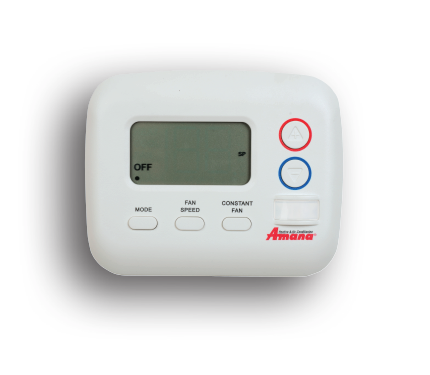

The Amana DSA02NO Wireless Digital Wall Thermostat delivers wire-free, high-precision climate control for commercial hospitality, motel, and multi-family properties. Engineered specifically for Amana J-Series and K-Series Packaged Terminal Air Conditioners, this battery-powered thermostat utilizes two-way Radio Frequency (RF) transmissions to communicate directly with the PTAC mainboard—requiring no external antenna, receiver, or line-of-sight placement.
Featuring simple one-button RF pairing, a crisp backlit digital display, 2-speed fan control (Low/High/Auto), and multi-stage heating support (2-stage heat / 1-stage cool), the DSA02NO eliminates thousands of dollars in wall drilling, wire fishing, and drywall patching during guest room retrofits.
Note: Native pairing requires no add-on antenna for Amana J-Series and K-Series PTACs. When pairing with legacy Amana G or E Series units, the DT01G DigiTenna receiver is required. When pairing with Distinctions by Amana models, the GT01H GenericTenna is required.
Share
Wire-Free Commercial Climate Control for Rapid Hotel Retrofits
Upgrading guest room climate controls from front-cabinet buttons to a convenient wall thermostat historically required pulling low-voltage wire through drywall, studs, and decorative wall coverings. The Amana DSA02NO Wireless Digital Thermostat completely removes this construction friction. Operating on secure 2-way Radio Frequency (RF) signals, the DSA02NO connects wirelessly to your PTAC unit from anywhere in the guest room without requiring direct line-of-sight alignment.
Native J-Series & K-Series Board Integration
Amana J-Series and K-Series PTAC chassis feature an integrated board-level RF receiver out of the box. Because the receiver is already built into the PTAC control board, the DSA02NO thermostat pairs directly to the unit without requiring external dongles, wire harnesses, or add-on receiver cards. Pairing is executed in seconds: place the PTAC board into RF learn mode and press the single pairing button on the back of the thermostat.
Commercial Performance & Multi-Stage Comfort
Multi-Stage Heat & Cool Support: Controls 1-stage compressor cooling and 2-stage heating (electric heat strips or heat pump auxiliary heat) for both PTC electric heat and PTH heat pump chassis.
Dual-Speed Fan Management: Features easy-access selector controls for Fan LOW, Fan HIGH, and Fan AUTO, giving hotel guests the choice between continuous background white noise or auto-cycling operation.
Non-Occupancy Sensing Simplicity: Designed for properties seeking low-cost wireless wall control without the complex programming or network infrastructure of full Energy Management Systems (EMS).
AA Battery Powered: Runs on standard AA alkaline batteries (included), eliminating hardwired electrical connections and ensuring continuous operation during power disruptions.
Two-Way RF Communication: High-reliability wireless radio transmission connects wall unit directly to the PTAC control board.
Large Backlit Digital Screen: High-contrast display illuminates automatically upon button press for night-time visibility.
2-Speed Blower Selector: Front-panel controls for LOW speed, HIGH speed, and AUTO fan cycling.
2-Stage Heat / 1-Stage Cool Control: Fully compatible with both conventional electric heat (PTC) and heat pump (PTH) chassis.
Off-White Commercial Bezel: Neutral commercial aesthetic blends cleanly with all hotel and residential interior paint colors.
Low-Battery Indicator: Visual screen alert notifies engineering staff when AA batteries require replacement during routine room audits.
Model / SKU DSA02NOOfficial Amana OEM Wireless Thermostat Kit
Power Supply 2x AA Alkaline Batteries (Included)Wireless battery operation (No C-wire required)
Communication Protocol 2-Way RF Transmissions (Radio Frequency)Operates through obstacles without line of sight
J / K Series Antenna Req. NONE (Built-in board RF receiver)Direct native board pairing
G / E Series Antenna Req. DT01G DigiTenna Receiver RequiredOptional adapter for legacy retrofits
Distinctions Series Req. GT01H GenericTenna Receiver RequiredOptional adapter for Distinctions models
System Compatibility 2-Stage Heat / 1-Stage CoolSupports PTC (Electric Heat) & PTH (Heat Pump)
Fan Speed Control2-Speed (Low / High / Auto)Front-panel digital push-button selector
Occupancy Sensor NO (Non-Occupancy Sensing Model)For full EMS, select Amana Eden EMS series
Programmability Non-Programmable (Manual Set-Point)Simple push-button temperature control
Dimensions 4.53" W x 4.53" H x 1.2" D Compact square wall plate profile
Color Finish Commercial Off-White Matches standard hotel guest room decor
