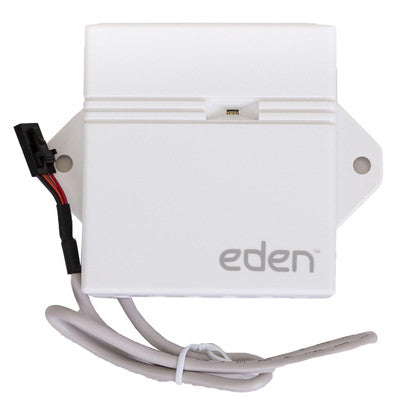

• Amana DT01G DigiTenna 2.4 GHz RF transceiver antenna module front view

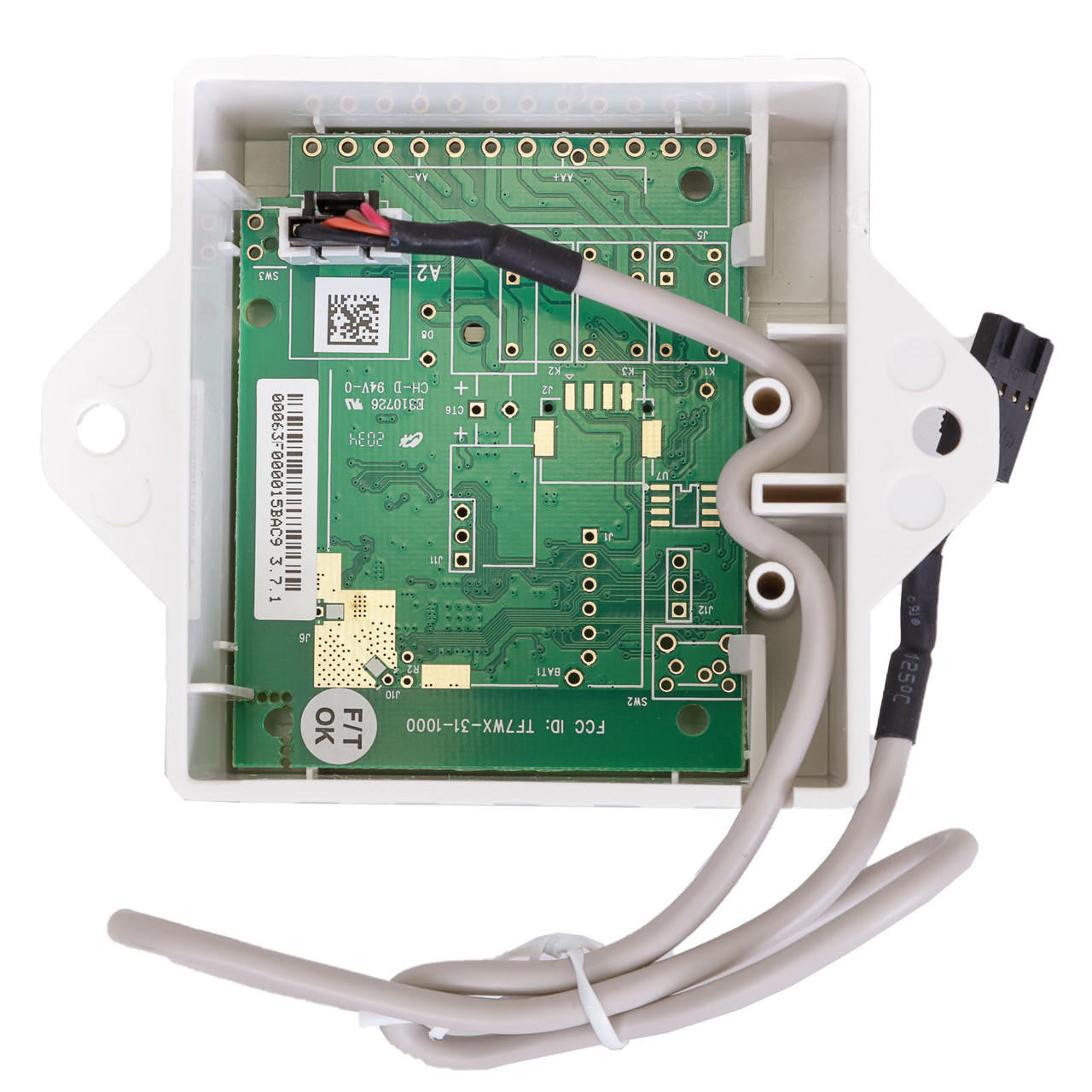

  • Multi-pin connection header pins on Amana DT01G wireless antenna card
1 2

Amana DT01G Commercial DigiTenna 2.4 GHz RF Transceiver Antenna Module | Plug-in Wireless Receiver Card for Amana Eden Energy Management Systems & PTAC Controls

Amana DT01G Commercial DigiTenna 2.4 GHz RF Transceiver Antenna Module | Plug-in Wireless Receiver Card for Amana Eden Energy Management Systems & PTAC Controls

$137.74 USD
$137.74 USD
Sale Sold out
Shipping calculated at checkout.

The Amana DT01G DigiTenna RF Transceiver Antenna Module is the dedicated hardware gateway that equips Amana PTAC units with 2.4 GHz wireless communication capabilities. Designed to plug directly into the electronic control board header of Amana PTAC chassis, the DT01G enables two-way Radio Frequency (RF) communication between the air conditioner and remote wireless thermostats, occupancy sensors, and room energy controllers.

By installing the DT01G DigiTenna module, property managers and electrical contractors can integrate wireless motion thermostats (such as the Amana DS01G or DSA02NO), wireless door contact switches (Amana DD01E), and DigiWatt lighting relays (Amana RKLC10M70) without running low-voltage thermostat wire through guest room walls.

Installation Note: Plugs directly into the multi-pin antenna header on the PTAC electronic control board inside the front cabinet junction box. Draws power directly from the board bus—no batteries or external wiring needed.

View full details

Essential Hardware Gateway for Amana DigiSmart & Eden EMS Wireless Networks

Modern commercial lodging facilities rely on automated energy management to slash utility overhead while maintaining guest comfort. The Amana DT01G DigiTenna RF transceiver card converts standard PTAC board commands into encrypted 2.4 GHz wireless signals, linking the chassis directly to the property-wide Amana Eden Energy Management System (EMS).

Unlocking Complete Wireless In-Room Component Connectivity

Installing the DT01G DigiTenna card enables seamless two-way RF pairing with:

  • Amana DS01G Wireless Motion Thermostats: Transmits guest temperature selections and PIR occupancy status to trigger automated energy setback routines.
  • Amana DD01E Wireless Door Switches: Receives open-door signals from entry doors or patio glass sliders, automatically pausing HVAC operation when doors are left open.
  • Amana RKLC10M70 DigiWatt Lighting Relays: Communicates unoccupied room status to de-energize non-critical 115V lamps and secondary appliance circuits.
  • Amana Central Eden EMS Server: Transmits real-time diagnostic alerts, coil temperatures, and occupancy logs to central property management software.

Fast 2-Minute Plug-and-Play Board Installation

  • Zero Drywall Drilling: Eliminates the extensive labor and material costs of pulling low-voltage thermostat wiring through guest room walls and drop ceilings.
  • Compact Internal Enclosure: Mounts neatly inside the PTAC internal electrical control box housing under the front cabinet cover, completely concealed from guests.
  • Low Voltage / High Penetration Range: Powered directly off the mainboard bus while delivering a strong 2.4 GHz RF signal that easily penetrates drywall, furniture, and metal enclosures.

2.4 GHz 802.15.4 RF Transceiver Architecture: High-reliability wireless protocol designed for commercial building automation.

Direct Board Header Interface: Plugs directly into the dedicated multi-pin connection header on Amana PTAC control boards.

Compact Plug-In Card Design: Fits entirely within the internal PTAC electrical control box enclosure.

Multi-Device RF Pairing Support: Receives simultaneous RF signals from wireless thermostats, door switches, and lighting relays.

Powered via Board Bus: Draws low-voltage power directly from the PTAC mainboard (no external batteries or transformers required).

Model SKU DT01GOfficial Amana DigiTenna RF Module
Communication Protocol 2.4 GHz 802.15.4 RF WirelessConnects natively with Amana RF thermostats & sensors
Interface / Connection Dedicated Multi-Pin Control Board Header Plug-and-play installation inside control box
Power Source Powered via PTAC Mainboard No batteries or external wiring required
Transceiver Range Up to 35–50 Feet Line-of-Sight RFCovers large guest suites and adjoining balconies
Device Compatibility DS01G, DSA02NO, DD01E, RKLC10M70 Central antenna hub for all Eden RF accessories
System Compatibility Amana J-Series & K-Series PTACs Adds or expands wireless RF capability
Mounting Enclosure
Internal PTAC Control BoxHidden safely behind front cabinet cover
Warranty Coverage 1-Year Manufacturer Warranty Backed by Amana HVAC / Goodman Manufacturing

What's Included

  • Amana DT01G DigiTenna 2.4 GHz RF Transceiver Card
  • Control Board Header Connection Harness / Pins
  • Installation & RF Pairing Setup Instruction Sheet
Required & Complementary Accessories

System Compatibility & Accessory Setup:

  • Wireless Motion Thermostat (Recommended): Amana DS01G Wireless Occupancy Sensing Thermostat
  • Wireless Standard Thermostat (Alternative): Amana DSA02NO 2-Way RF Wireless Digital Wall Thermostat
  • Wireless Door Switch (Optional): Amana DD01E Wireless Door Switch Sensor
  • DigiWatt Lighting Relays (Optional): Amana RKLC10M70 30A Line-Voltage Lighting Relays
  • PTAC Chassis Compatibility: Amana J-Series and K-Series Commercial PTAC Units

coming soon

Frequently Asked Questions

Q1: What is the primary function of the Amana DT01G DigiTenna antenna card? +

A: The DT01G is an RF transceiver module that plugs into the PTAC control board. It enables the PTAC unit to communicate wirelessly via 2.4 GHz RF with wireless wall thermostats (DS01G/DSA02NO), balcony door sensors (DD01E), and lighting relays (RKLC10M70).

Q2: What is the difference between the Amana DT01G and GT01H antenna modules? +

A: Both modules serve as 2.4 GHz RF transceivers for Amana PTACs. The DT01G DigiTenna is designed specifically for Amana DigiSmart / Eden EMS board configurations, while the GT01H GenericTenna provides universal RF compatibility across newer J-Series mainboards. Both enable full wireless thermostat and sensor pairing.

Q3: Where is the DT01G DigiTenna module installed on the PTAC? +

A: The DT01G plugs directly into a dedicated multi-pin connection header on the main electronic control board inside the PTAC electrical box (behind the front cabinet cover).

Q4: Does the Amana DT01G require batteries or external power wiring? +

A: No. The DT01G receives low-voltage operating power directly through its connection header on the PTAC mainboard. It requires no batteries, external transformers, or extra wiring.

Q5: Is the DT01G antenna required if I am using a wired wall thermostat? +

A: No. If you are using a standard 24V hardwired wall thermostat (like the Amana PHWT-A150H) connected via thermostat wire, the DT01G antenna card is not required. It is only needed for wireless RF control setups.
