The Amana GWT01NE Wireless Digital Wall Thermostat Kit provides wire-free temperature control for commercial hospitality, multi-family, and senior living properties. Engineered as a hybrid wireless solution, the GWT01NE includes both the digital wall thermostat transmitter and the matching antenna receiver module required for wireless RF communication.
Designed for universal compatibility, the GWT01NE connects to any 24V wall-thermostat-capable PTAC unit—including conventional electric heat (PTC) and heat pump (PTH) models across all major brands. Featuring a backlit digital LCD, 2-speed fan selector (Low/High/Auto), field-adjustable setpoint limits, and 5-minute compressor delay protection, this kit eliminates drywall cutting and wire fishing during room retrofits.
Note: Includes wireless wall thermostat, antenna receiver module, wall plate, mounting hardware, and 2 AAA batteries. Compatible with Amana J/K/G/E series, Distinctions by Amana, GE Zoneline, Friedrich, Carrier, and universal 24V PTAC systems.
Share
Universal Wire-Free Climate Control for Fast Commercial Retrofits
Upgrading guest room climate controls from front-cabinet buttons to a convenient wall thermostat usually requires running low-voltage wiring through drywall, studs, and decorative finishes. The Amana GWT01NE Wireless Thermostat Kit eliminates this construction friction. By combining a wireless wall thermostat transmitter with an included antenna receiver module, the GWT01NE establishes a secure Radio Frequency (RF) connection between the wall and the PTAC chassis without requiring direct line-of-sight alignment.
Universal 24V Compatibility Across Heat Pump & Electric Heat PTACs
Unlike proprietary thermostats that only work on specific chassis generations, the GWT01NE is engineered for universal application:
Conventional Electric Heat Systems (1H/1C): Connects to standard 24V relay terminals (R, C, GL, GH, W, Y) for compressor cooling and electric resistance heating.
Heat Pump Systems (1H/1C & 2H/1C): Configurable via tech setup menu for heat pump reversing valve logic (energizes in cooling "O" or heating "B") with 2nd stage auxiliary heat engagement. Multi-Brand Compatibility: Works seamlessly on Amana, Goodman, GE Zoneline, Friedrich, Carrier, Islandaire, and Gree/Midea PTAC units equipped with remote 24V thermostat terminals.
Advanced Property Management & Energy Protection Controls
Field-Adjustable Setpoint Limits: Property managers can set maximum heat limits (HU menu setting, 44°F to 90°F) and minimum cool limits (CL menu setting, 44°F to 90°F) to prevent guest energy abuse. 5-Minute Compressor Delay: Built-in short cycle delay prevents the compressor from restarting within 5 minutes of shutting off, protecting equipment from electrical spikes and premature motor burnout. Adjustable Cycle Differential (Swing): Heating and cooling swing settings are field-adjustable from 0.2°F to 2.0°F, allowing facility engineers to fine-tune room cycling rates. Dual Power Options: The wall thermostat transmitter can be powered by 2 AAA alkaline batteries (included) or hardwired to 18-30 VAC transformer power.

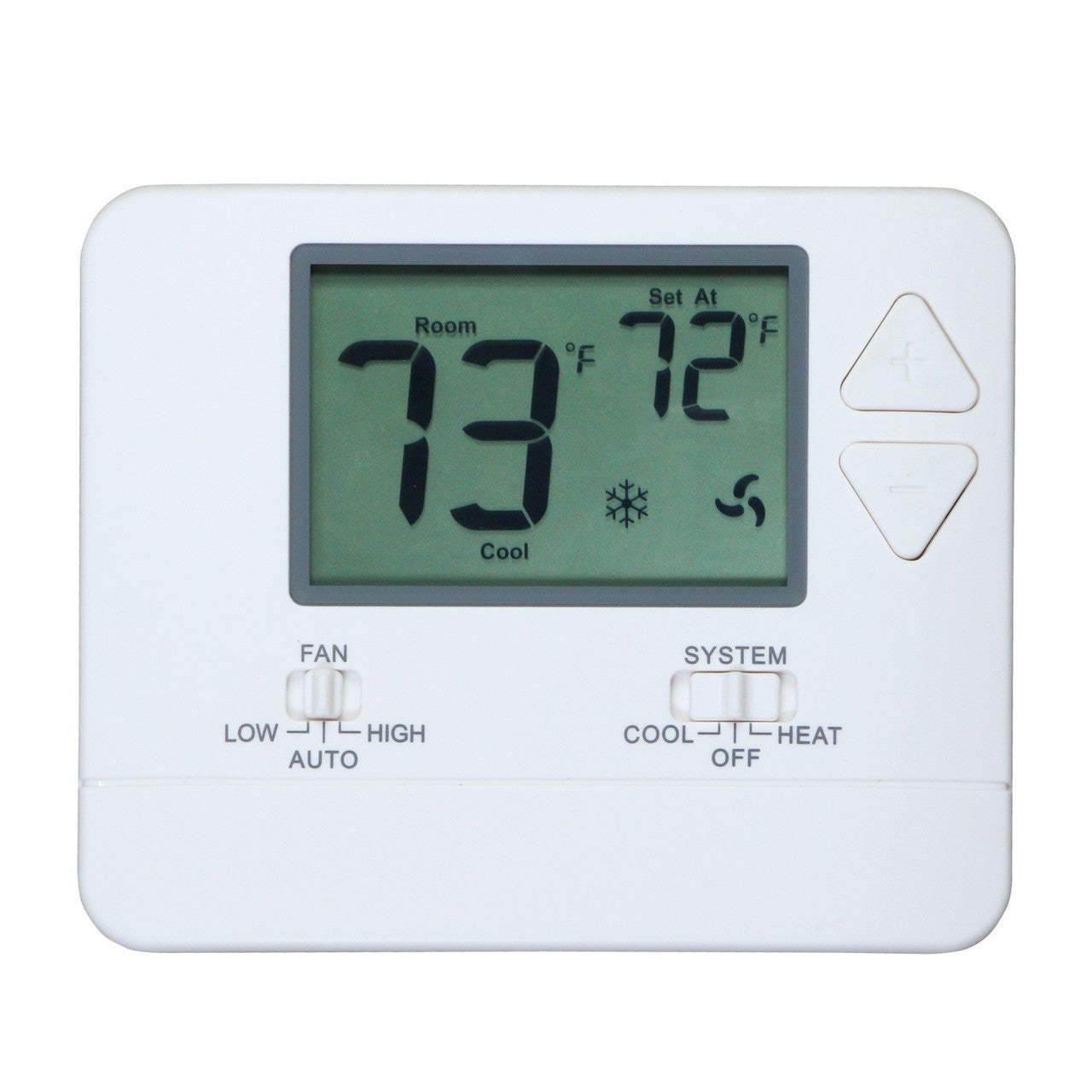

Backlit Digital LCD Display: Clear illuminated screen displaying current room temperature, setpoint, system mode, and low battery status.
2-Speed Fan Control: Dedicated selector switches for Fan LOW (GL terminal), Fan HIGH (GH terminal), and Fan AUTO cycling.
Dual Power Capability: Operates on 2 AAA alkaline batteries or 24 VAC hardwire connection via R and C terminals.
Tech Setup Configuration Menu: Field-adjustable parameters for heat pump reversing valve (O/B), setpoint limits, and temperature scale (°F/°C).
Non-Programmable Guest Interface: Simple push-button setpoint buttons (+/-) prevent guest confusion and accidental schedule overrides.
Flexible Mounting: Wall plate mounts securely with included screws and drywall anchors or commercial mounting tape.
Model Number GWT01NEComplete Wireless Thermostat & Antenna Kit
Power Source (Thermostat) 2x AAA Alkaline Batteries or 24 VAC (18-30 VAC)Dual power mode flexibility
Power Source (Antenna) 24 VAC (From PTAC R and C terminals)Powered by PTAC control transformer
Display Range 32°F to 99°F (1°C to 40°C)High-contrast backlit LCD screen
Control Range 44°F to 90°F (7°C to 32°C)Setpoint adjustment range
Load Rating 1.0A per terminal (1.5A maximum combined)Class II NEC circuit compliant
Terminal Connection R Transformer Power (24 VAC Hot)Primary power input
Terminal Connection C Transformer Common (24 VAC)Common wire (Optional with battery power)
Terminal Connection B B/O Reversing ValveHeat pump changeover valve (Configurable O or B)
Terminal Connection GL Low Fan RelayLow speed blower control
Terminal Connection GH High Fan RelayHigh speed blower control
Terminal Connection W Stage 1 Heat (Conventional) / Stage 2 Aux HeatResistance heat or auxiliary heat strip
Terminal Connection Y Stage 1 Cooling (Conventional) / Stage 1 Heat Pump Compressor engagement relay
