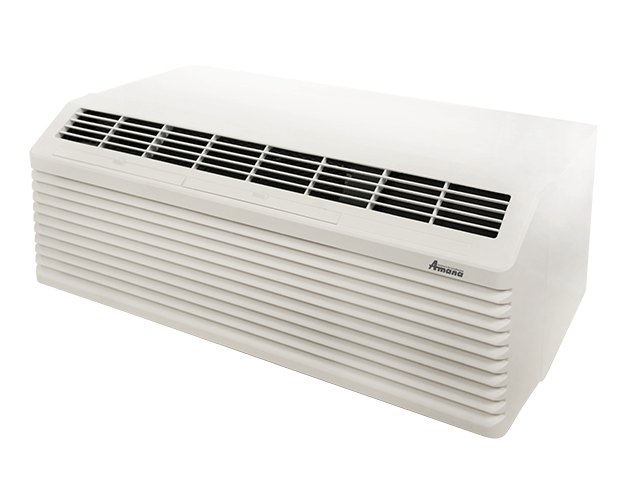

Amana PTC073J25AXXX 7,000 BTU Commercial PTAC Air Conditioner with 2.5kW Electric Heat & R-32 Refrigerant (208/230V, 15A)
Amana PTC073J25AXXX 7,000 BTU Commercial PTAC Air Conditioner with 2.5kW Electric Heat & R-32 Refrigerant (208/230V, 15A)
Couldn't load pickup availability
The Amana PTC073J25AXXX is an industry-leading Packaged Terminal Air Conditioner (PTAC) engineered specifically for hotel rooms, motel retrofits, multi-family housing, and commercial properties. Delivering 7,000 BTU/h cooling and a built-in 2.5 kW electric heater, this unit maintains year-round climate comfort in spaces ranging from 100 to 275 sq. ft.
Share
Engineered for high-duty hospitality environments, multi-family complexes, and commercial properties, the Amana PTC073J25AXXX sets the standard for quiet, ultra-efficient, year-round climate control. Part of Amana's next-generation "J-Series," this PTAC combines 7,000 BTU/h cooling capacity with an integrated 2.5 kW electric heat strip, providing seamless indoor comfort across changing seasons.
Transitioning to eco-conscious R-32 refrigerant, the PTC073J25AXXX delivers higher operational efficiency over older R-410A systems while boasting an impressive 12.8 EER (Energy Efficiency Ratio). Designed to fit standard 42-inch PTAC wall sleeves, it offers general contractors and property managers a frictionless direct-replacement solution that lowers building energy demand while exceeding guest expectations.
Key Performance & Technical Highlights
High-Efficiency R-32 Refrigerant: Uses low Global Warming Potential (GWP) R-32 refrigerant, meeting strict modern environmental regulations while maximizing thermal transfer efficiency.
Dual-Motor Quiet Operation: Features separate indoor and outdoor fan motors to drastically minimize sound levels, ensuring undisturbed sleep for hotel guests and residents.
Eden Energy Management Compatibility: Ready for integration with wireless RF controls and remote wall thermostats to optimize energy usage in unoccupied guest rooms.
Seacoast & Corrosion Protection: Built with advanced coil coatings and rust-resistant hardware to withstand high-humidity and harsh coastal environments.
Standard 15-Amp Power Plug: Outfitted with a NEMA 6-15P plug configured for universal 208/230V, 15-amp commercial electrical circuits.
Designed for Franchise PIP Compliance & Hospitality Operations
Sourcing PTACs at scale requires strict adherence to brand standards and property improvement plans (PIPs). The Amana PTC073J25AXXX is built to pass rigorous hotel brand inspections. Its sleek, tamper-resistant front cover conceals primary controls to prevent unauthorized setting changes, while integrated emergency heat and freeze protection safeguards your facility against unexpected winter pipe freezes.
Ideal Commercial Applications
Hotels, Motels & Extended Stay Properties: Delivers quiet, individual guest room climate customization with low maintenance overhead.
Multi-Family Housing & Apartments: Cost-effective zone cooling and primary electric heat for studio and one-bedroom units (100–275 sq. ft.).
Senior Living & Long-Term Care Facilities: Consistent, draft-free temperature management compatible with simple wall thermostat controls.
Commercial Office Additions & Modular Spaces: Direct wall sleeve installation without requiring complex ductwork.
7,000 BTU Cooling Capacity: Optimized to efficiently cool spaces up to 275 sq. ft.
2.5 kW Electric Heating: Integrated electric heat strip provides 8,500 BTUs of dependable warming.
High-Efficiency 12.8 EER: Reduces utility overhead for commercial property managers.
Low-GWP R-32 Refrigerant: Eco-friendly refrigerant design delivers enhanced thermodynamic performance.
Whisper-Quiet Dual Fan Motors: Separates indoor and outdoor airflow to eliminate operational noise.
Standard 42″ Industry Fit: Replaces legacy Amana, GE, and Friedrich units without wall modifications.
NEMA 6-15P Configuration: Plugs directly into standard 208/230V, 15A wall receptacles.
Eden Energy Management System: Wirelessly links to automated occupancy sensors and smart wall thermostats.
Corrosion & Seacoast Protection: Protective coatings safeguard outdoor coils from coastal humidity and airborne salts.
Automated Freeze Protection: Initiates heat automatically if room temperature drops near freezing.
Removable & Washable Air Filters: High-density nylon mesh filters trap dust and allow easy cleaning.
Tamper-Proof Front Cover: Discretionary control panel cover prevents unauthorized setting tampering.
Automatic Restart: Restores operational settings seamlessly after building power interruptions.
Tangential Blower Wheel: Smoothly disperses air across the room for even temperature distribution.
Specification CategoryParameter / ValueBrand
Amana HVAC
Model Number
PTC073J25AXXX
Product Type
Packaged Terminal Air Conditioner (PTAC) with Electric Heat
Cooling Capacity
7,000 BTU/h (Actual @ 230V: 7,100 BTU / @ 208V: 7,000 BTU)
Electric Heating Capacity
2.5 kW (8,500 BTU/h @ 230V / 6,800 BTU/h @ 208V)
EER (Energy Efficiency Ratio)
12.8
Voltage / Phase / Frequency
208/230V / 1-Phase / 60 Hz
Required Circuit Amperage
15 Amps
Power Plug Type
NEMA 6-15P
Maximum Cooling Amps / Watts
3.1 Amps / 580 Watts
Maximum Heating Amps / Watts
10.9 Amps / 2,500 Watts
Airflow Volume (CFM)
High: 330 CFM / Low: 245 CFM
Refrigerant Type
Eco-Friendly R-32 (Low GWP)
Unit Dimensions (W × H × D)
42″ W × 16-1/16″ H × 21-1/2″ D
Shipping Weight
Approx. 114 lbs
Cabinet Color
Commercial Off-White
Fan Speeds / Motors
2 Fan Speeds / 2 Dual-Fan Motors
Thermostat Compatibility
Remote Wall Thermostat Compatible & Board-Mounted Controls
Smart Wireless Features
Eden System Ready / Bluetooth & RF Compatible
Freeze Protection
Yes (Built-In)
Manufacturer Warranty
1-Year Full Unit Repair / 5-Year Sealed System Limited Warranty
Country of Manufacture
USA (Assembled in the USA)
Included in the Box
- Amana PTC073J25AXXX 7,000 BTU PTAC Unit (Main Chassis)
- Front Cabinet Cover (Off-White)
- Pre-Installed 15-Amp (NEMA 6-15P) Power Cord
- Washable High-Density Air Filters
- Installation & Owner’s Operating Manuals
Required Accessories
Note: Standard PTAC installations require external accessories if equipping a new construction space.
- Wall Sleeve (WS900E): Insulated 42″ commercial metal wall sleeve for structural mounting.
- Architectural Exterior Grille (SGK01B / AGK01E): Stamped aluminum or architectural louvers for exterior weatherproofing.
- Remote Wall Thermostat: Digital non-programmable or wireless smart thermostat for remote control.
- Condensate Drain Kit (DK900D): External/internal drain kit to direct condensation away from the building envelope.
