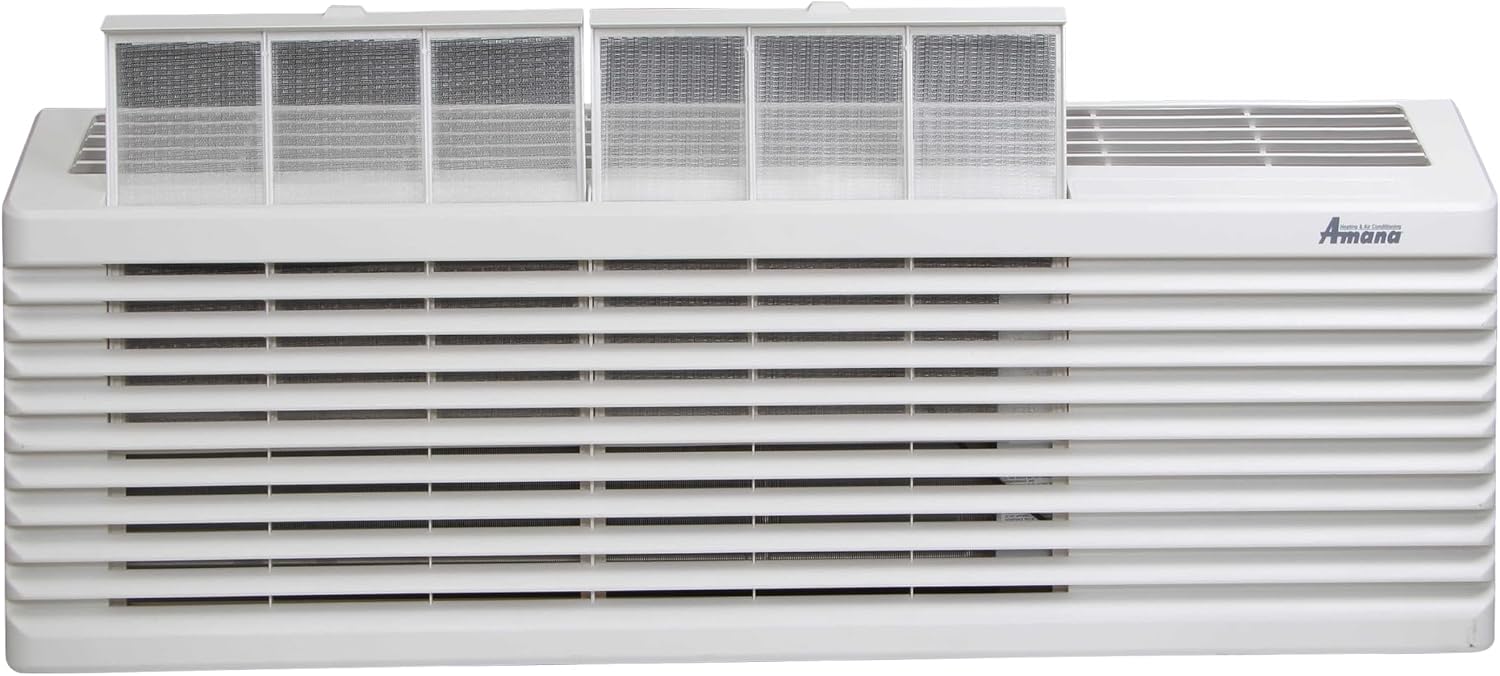

• Amana PTC093J35AXXX commercial 9,000 BTU J-Series PTAC chassis front view

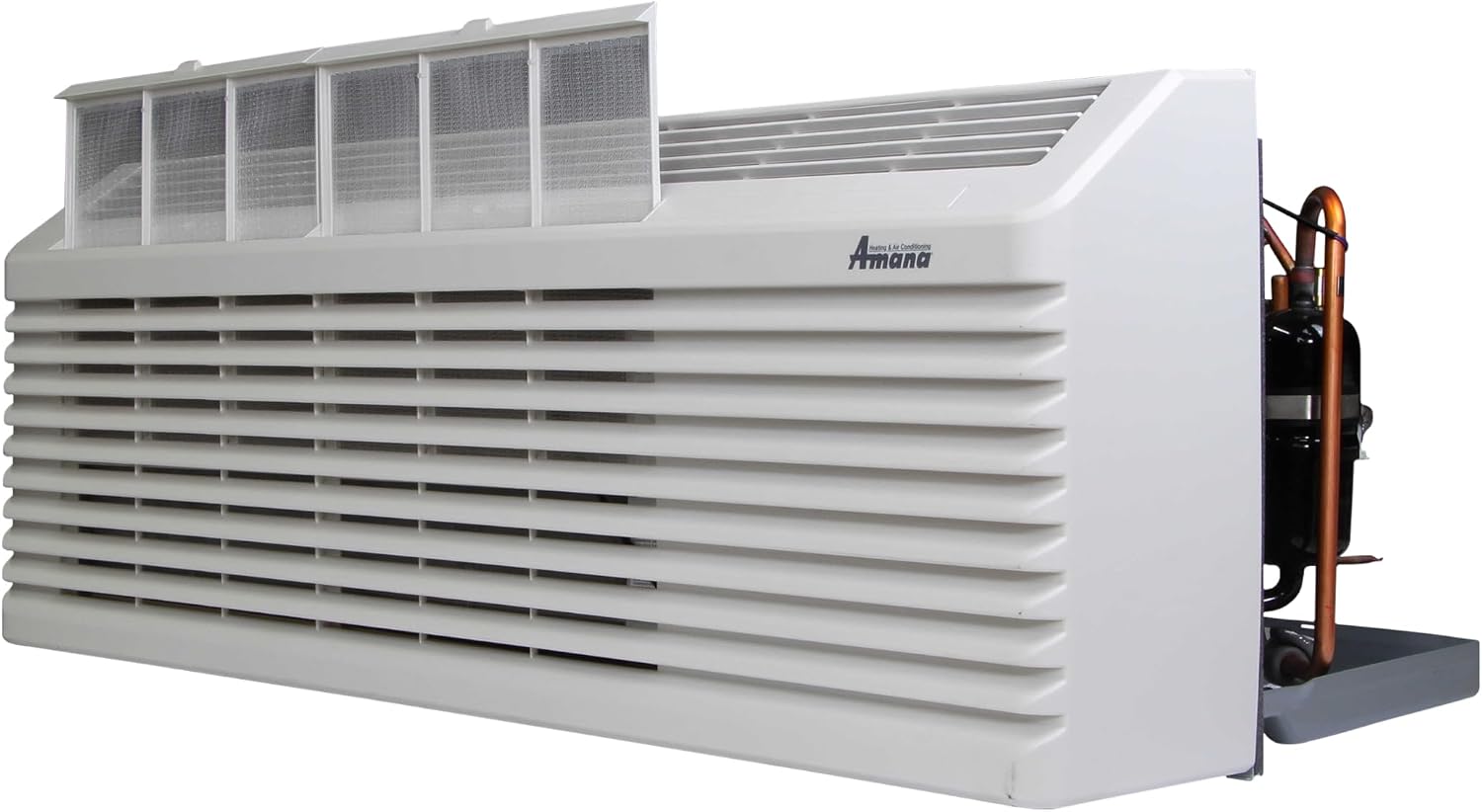

  • Side profile view showing shallow cabinet depth of Amana PTC093J35AXXX PTAC

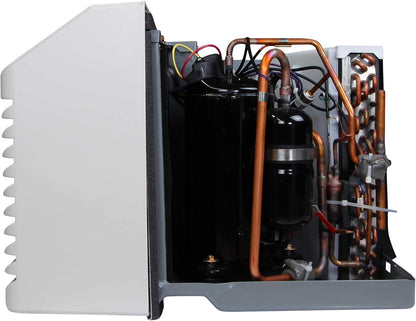

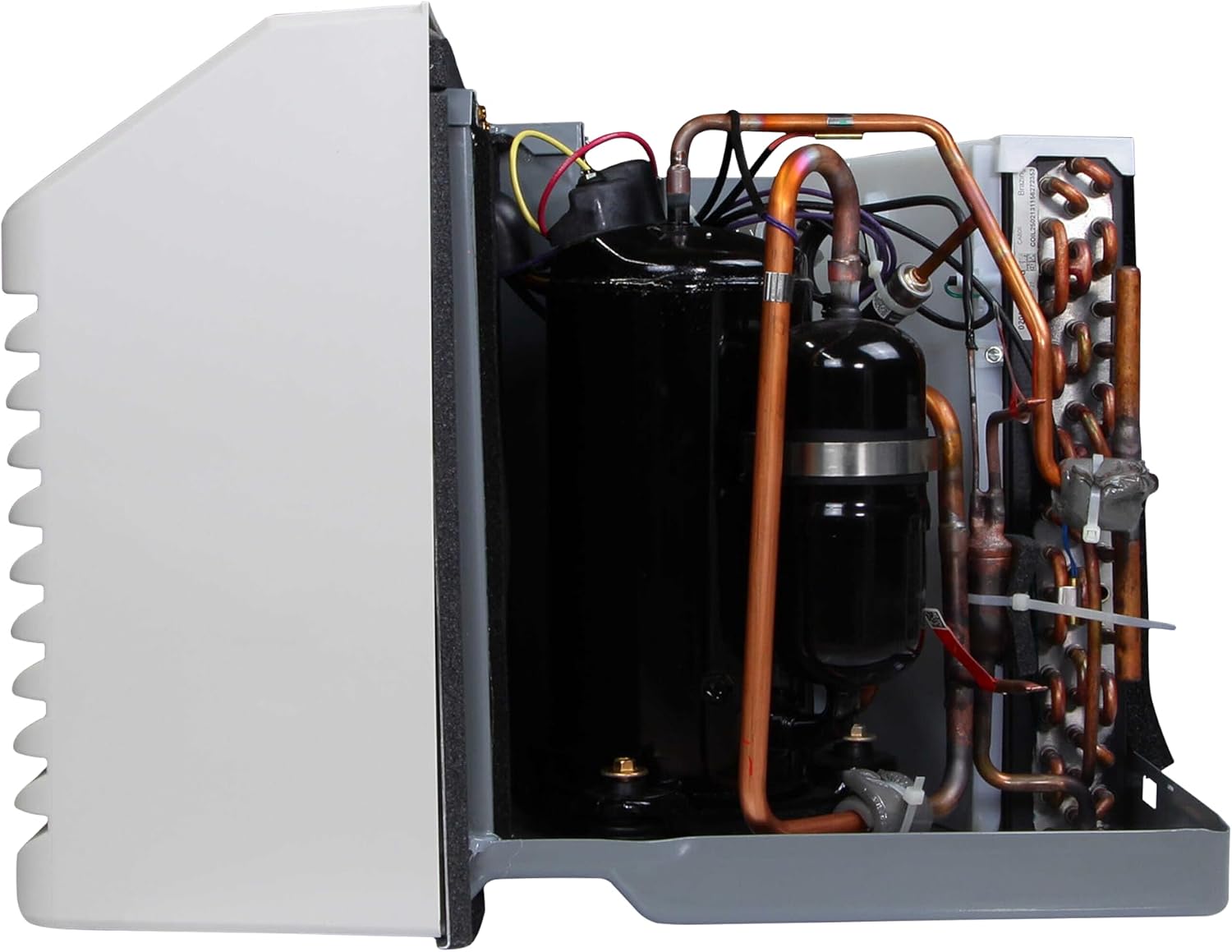

  • Lush Global Contracting trade warehouse staging Amana PTC093J35AXXX PTAC inventory
1 3

Amana PTC093J35AXXX Commercial J-Series 9,000 / 9,200 BTU Packaged Terminal Air Conditioner with 3.5kW Electric Heat | 208/230V 20A NEMA 6-20P LCDI Power Cord & Eco-Friendly R-32 Refrigerant

Amana PTC093J35AXXX Commercial J-Series 9,000 / 9,200 BTU Packaged Terminal Air Conditioner with 3.5kW Electric Heat | 208/230V 20A NEMA 6-20P LCDI Power Cord & Eco-Friendly R-32 Refrigerant

$1,046.50 USD
$1,046.50 USD
Sale Sold out
Shipping calculated at checkout.

The Amana PTC093J35AXXX Commercial J-Series PTAC is a flagship 9,000 / 9,200 BTU Packaged Terminal Air Conditioner engineered for hotel guest rooms, senior living suites, multi-family housing, and healthcare facilities. Powered by next-generation, low-GWP R-32 eco-refrigerant and equipped with a heavy-duty 3.5 kW electric heat strip (approx 12,000 BTU electric heat at 230V, this unit delivers rapid cooling and backup heating for spaces ranging from 300 to 525 sq. ft.

Featuring a whisper-quiet STC 29 sound rating driven by dual fan motors and an indoor tangential blower wheel, the PTC093J35AXXX includes a factory-attached 20-Amp NEMA 6-20P LCDI power cord. Equipped with integrated Bluetooth® and a built-in 2.4 GHz RF transceiver, it pairs natively with Amana Eden Energy Management Systems (EMS) and wireless thermostats (DS01G) to optimize building energy usage.

Electrical & Refrigerant Specs: Operates on 208/230V, 1-Phase, 60Hz power (20A circuit required). Fully California Title 24 and US AIM Act compliant using low-GWP R-32 refrigerant. Fits all standard 42" x 16" PTAC wall sleeves. Requires a wired or wireless wall thermostat for guest operation.

View full details

Next-Generation R-32 Efficiency for Hospitality & Lodging Operations

Rising electric utility rates and strict state refrigerant legislation (such as California Title 24 and the federal AIM Act) demand commercial HVAC systems that deliver superior EER performance while lowering environmental impact. The Amana J-Series PTC093J35AXXX utilizes R-32 eco-refrigerant—delivering up to 12% higher thermodynamic efficiency and a 67% lower Global Warming Potential (GWP) compared to legacy R-410A systems.

Whisper-Quiet STC 29 Acoustic Engineering for Guest Comfort

  • Dual Independent Fan Motors: Separates indoor and outdoor airflow loops, enabling low-speed indoor air distribution without straining outdoor condenser airflow.
  • Tangential Blower Wheel: Smoothly disperses conditioned air across the entire room width, eliminating harsh mechanical buffeting and air blast noise.
  • STC 29 Sound Transmission Rating: Acoustically insulated cabinet absorbs outdoor street noise and compressor vibration, ensuring uninterrupted sleep for hotel guests and senior living residents.

Integrated Eden EMS Wireless Connectivity & Anti-Tamper Security

  • Built-In 2.4 GHz RF Transceiver: Factory-equipped with internal RF antennas to link wirelessly out-of-the-box with Amana Eden occupancy thermostats (DS01G) and balcony door sensors (DD01E).
  • Mobile App Bluetooth Diagnostics: Service technicians can configure temperature setbacks, run diagnostic checks, and update firmware directly from the Amana mobile app without removing front cabinet panels.
  • Sleek Knobless Front Cabinet: Eliminates user-accessible buttons or dial knobs on the front cover, preventing guest tampering and forcing climate operation through central wall thermostats or property EMS rules.

Commercial Reliability & Corrosion Protection

  • 100% Factory Run-Tested: Every unit undergoes helium leak testing and full operational run-testing at Goodman Manufacturing's domestic assembly facility before warehouse dispatch.
  • Condensate Dispersion System: Slings excess cooling water directly onto the outdoor condenser coil, evaporating moisture into the outdoor airstream to boost cooling EER and minimize sleeve water runoff.

Factory-Installed 20A LCDI Power Cord: Includes NEMA 6-20P plug for fast 208/230V outlet connection.

30-Second Fan-Off Delay: Blows residual cool/warm air off the coils after compressor shutoff to maximize energy extraction.

Automatic Freeze Protection: Automatically triggers fan and electric heat if room temperatures drop below 40°F.

4-Minute Compressor Lock-In: Prevents short-cycling to extend refrigeration compressor service life.

Easy-Access Washable Filters: Top-pull dual nylon mesh filters (FK10K) allow 30-second maintenance cleaning.

Model SKU PTC093J35AXXXOfficial Amana J-Series Commercial PTAC
Nominal Cooling Capacity 9,000 / 9,200 BTU Ideal for 300 to 525 sq. ft. guest rooms
Electric Heat Capacity3.5 kW (12,000 BTU @ 230V / 9,900 BTU @ 208V) High-output electric heat strip
Energy Efficiency Rating (EER)12.2 / 12.1 EER High-efficiency commercial cooling
Operating Voltage 208 / 230VAC, 1-Phase, 60 HzStandard commercial line-voltage branch circuit
Receptacle / Plug Type NEMA 6-20P (LCDI Power Cord Included) Requires 20-Amp circuit breaker & 20A outlet
Cooling Amps / Watts 4.1 Amps / 805 WattsLow compressor operating current
Heating Amps / Watts 15.5 Amps ($230\text{V}$) / 3,570 WattsHeavy-duty electric heat draw
Refrigerant TypeR-32 (Low-GWP Eco-Refrigerant) California Title 24 & AIM Act compliant
Acoustic Rating STC 29 (Sound Transmission Class) Whisper-quiet dual fan motor operation
Indoor Blower Airflow 290 CFMUniform air throw across guest suites
Chassis Dimensions 42" Wide x 16-1/16" High x 21-1/2" Deep Fits standard commercial 42" wall sleeves
Unit Weight / Shipping Weight112 lbs / 120 lbs Palletized B2B freight shipping
Warranty Coverage1-Yr Full / 2-5 Yr Functional & Sealed System Backed by Amana HVAC / Goodman Manufacturing

What's Included

  • Amana PTC093J35AXXX 9,000 BTU J-Series PTAC Chassis
  • Factory-Attached 20-Amp NEMA 6-20P LCDI Power Cord
  • Dual Washable Nylon Mesh Return Air Filters (FK10K)
  • Installation, Operations & Wireless Setup Guide
Required & Complementary Accessories

System Compatibility & Accessory Setup:

  • Wall Sleeve (Required for New Install): Amana WS900QW Standard 42" Insulated Metal Wall Sleeve
  • Exterior Grille (Required for New Install): Amana DGK1B Architectural Louvered Grille or SGK01B Stamped Aluminum Grille
  • Wireless Motion Thermostat (Required for Controls): Amana DS01G Wireless Occupancy Sensing Thermostat
  • Hardwired Wall Thermostat (Alternative): Amana PHWT-A150H Non-Programmable 2-Stage Wired Thermostat
  • Wireless Door Switch Sensor (Optional): Amana DD01E Wireless Door Sensor
  • Condensate Drain Kit (Optional): Amana PTDK01QW / TDK02QW Sleeve Drain Kit

coming soon

Frequently Asked Questions

Q1: What power cord and circuit breaker size does the Amana PTC093J35AXXX require? +

A: The PTC093J35AXXX comes factory-equipped with a 20-Amp NEMA 6-20P LCDI power cord. It requires a 208/230V, 20-Amp dedicated circuit breaker and matching NEMA 6-20R wall outlet.

Q2: Does the Amana PTC093J35AXXX require a wall thermostat to operate? +

A: Yes. Modern Amana J-Series PTACs feature a sleek, knobless front cover without manual buttons to prevent guest tampering. Room controls require a wired thermostat (PHWT-A150H) or a 2.4 GHz wireless RF thermostat (DS01G / DSA02NO).

Q3: What is the heating output of the 3.5 kW electric heat strip? +

A: At 230V, the 3.5 kW heater produces 12,000 BTU of heat output 15.5 Amps. At 208V, it produces 9,900 BTU of heat output 14.1 Amps.

Q4: What room square footage is suitable for a 9,000 BTU PTAC? +

A: A 9,000 BTU PTAC unit is optimized for commercial rooms and guest suites measuring between 300 and 525 square feet, depending on ceiling height, sun exposure, and climate zone.

Q5: Is R-32 refrigerant legal in California and states with strict climate rules? +

A: Yes. R-32 refrigerant has a Global Warming Potential (GWP) of 677, making it fully compliant with California Air Resources Board (CARB) Title 24 regulations and federal AIM Act phase-down rules.
