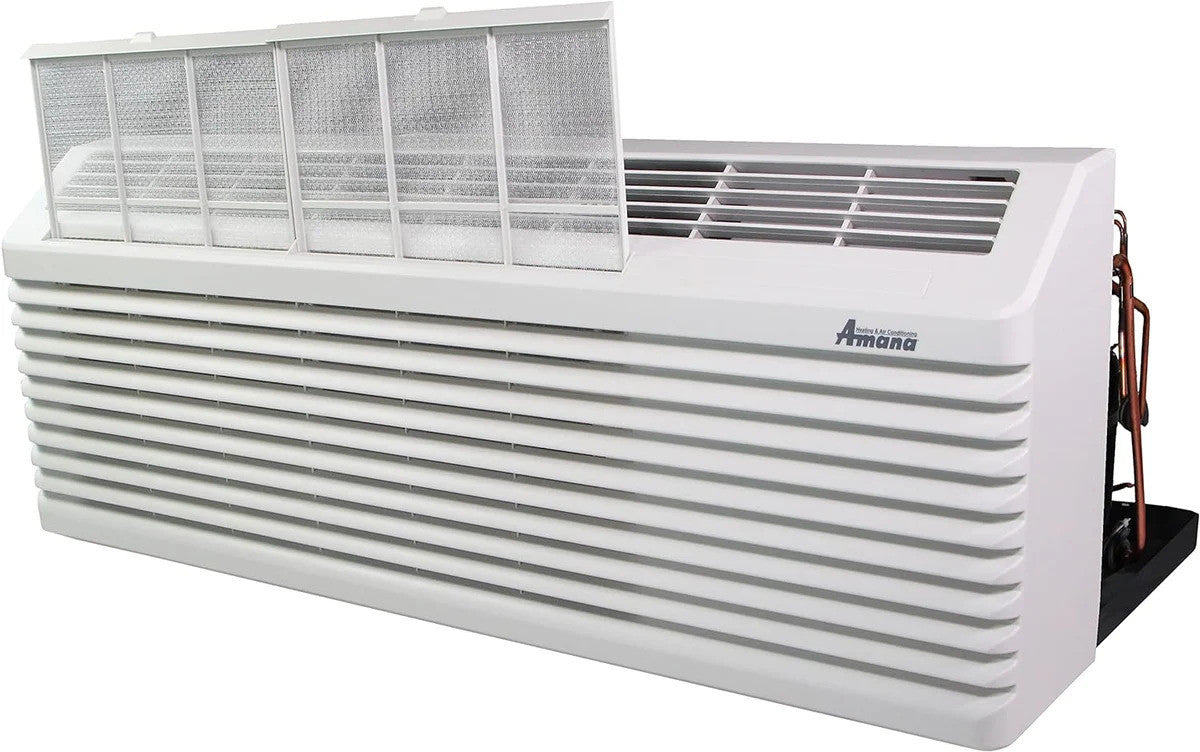

• Amana PTC093J50AXXX commercial 9,000 BTU J-Series PTAC chassis front view

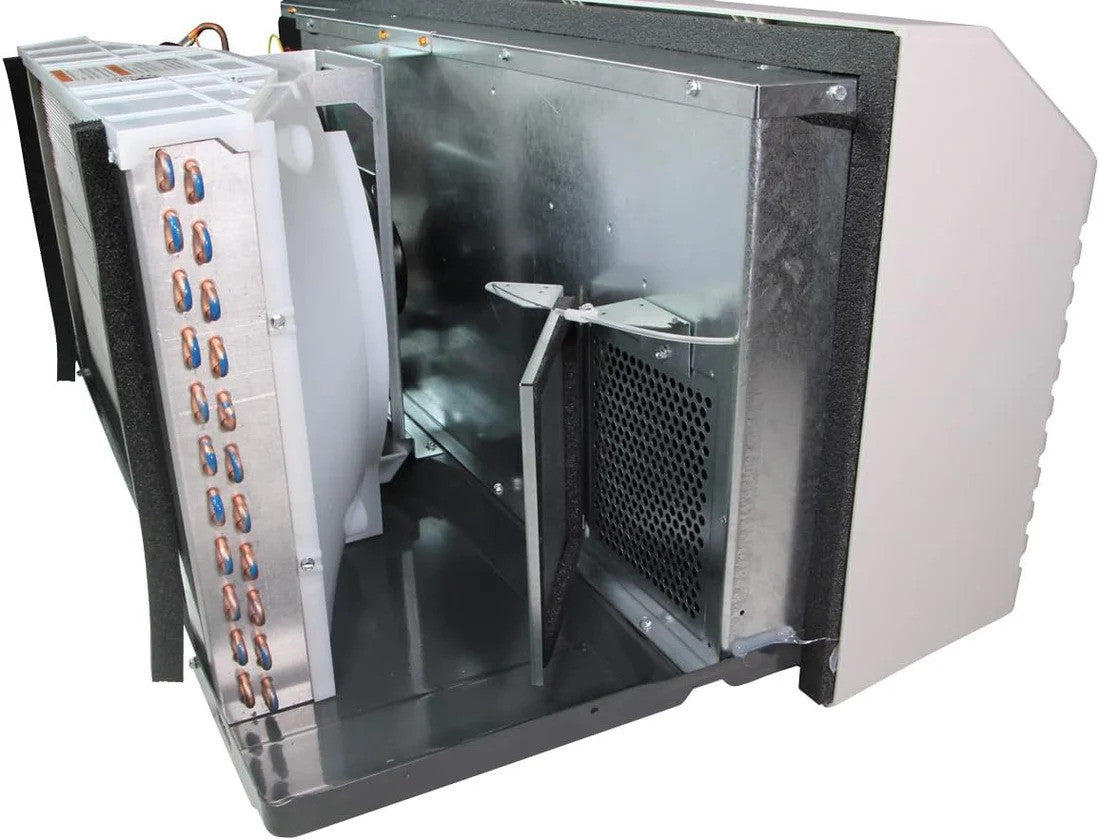

  • Internal view of R-32 eco-refrigerant compressor and dual fan motors in J-Series PTAC

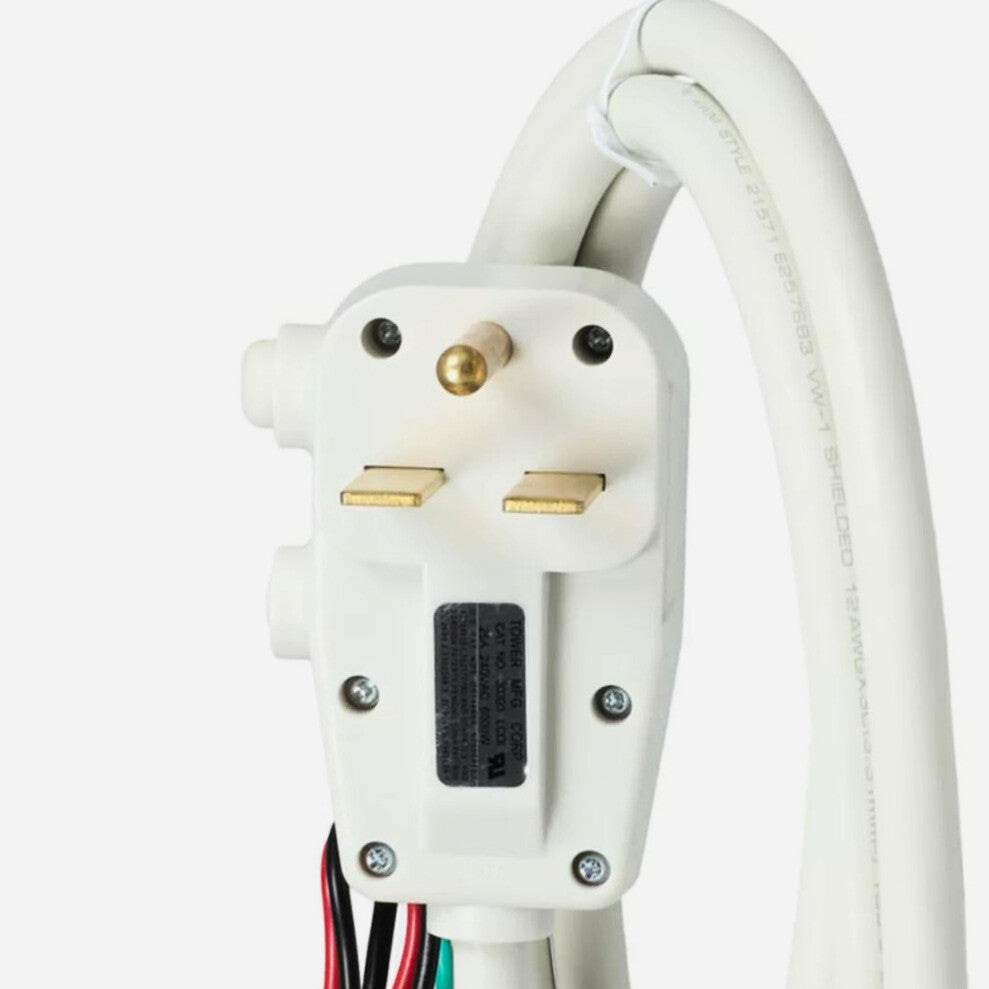

  • NEMA 6-30P 30-Amp LCDI power cord attached to Amana PTC093J50AXXX
1 3

Amana PTC093J50AXXX Commercial J-Series 9,000 / 9,200 BTU Packaged Terminal Air Conditioner with High-Output 5.0kW Electric Heat | 208/230V 30A NEMA 6-30P LCDI Power Cord & Eco-Friendly R-32 Refrigerant

Amana PTC093J50AXXX Commercial J-Series 9,000 / 9,200 BTU Packaged Terminal Air Conditioner with High-Output 5.0kW Electric Heat | 208/230V 30A NEMA 6-30P LCDI Power Cord & Eco-Friendly R-32 Refrigerant

$1,075.00 USD
$1,075.00 USD
Sale Sold out
Shipping calculated at checkout.

The Amana PTC093J50AXXX Commercial J-Series PTAC is a heavy-duty 9,000 / 9,200 BTU Packaged Terminal Air Conditioner engineered specifically for cold-climate hotel guest rooms, mountain resorts, senior living suites, and multi-family housing. Powered by next-generation, low-GWP R-32 eco-refrigerant and equipped with a maximum-output 5.0 kW electric heat strip (approx. 17,100 BTU electric heat at 230V), this high-capacity heating unit delivers rapid cooling and intense backup warmth for spaces ranging from 300 to 525 sq. ft.

Featuring a whisper-quiet STC 29 sound rating driven by dual fan motors and an indoor tangential blower wheel, the PTC093J50AXXX includes a factory-attached 30-Amp NEMA 6-30P LCDI power cord. Equipped with integrated Bluetooth® and a built-in 2.4 GHz RF transceiver, it pairs natively with Amana Eden Energy Management Systems (EMS) and wireless thermostats (DS01G) to optimize building energy usage.

Electrical & Refrigerant Specs: Operates on 208/230V, 1-Phase, 60Hz power (30A circuit required). Fully California Title 24 and US AIM Act compliant using low-GWP R-32 refrigerant. Fits all standard 42" x 16" PTAC wall sleeves. Requires a wired or wireless wall thermostat for guest operation.

View full details

Next-Generation R-32 Efficiency & High-Output 5.0kW Winter Heating

In cold-climate regions and corner-suite hotel rooms, standard 2.5kW or 3.5kW electric heat strips may struggle to maintain comfortable indoor temperatures during severe winter freezes. The Amana J-Series PTC093J50AXXX pairs a high-efficiency 9,000 BTU cooling chassis with a high-capacity 5.0kW heating element (17,100 BTU output) to ensure guest rooms warm up in minutes. Utilizing R-32 eco-refrigerant, this unit delivers up to 12% higher thermodynamic efficiency and a 67% lower Global Warming Potential (GWP) compared to legacy R-410A systems.

Whisper-Quiet STC 29 Acoustic Engineering for Guest Comfort

  • Dual Independent Fan Motors: Separates indoor and outdoor airflow loops, enabling low-speed indoor air distribution without straining outdoor condenser airflow.
  • Tangential Blower Wheel: Smoothly disperses conditioned air across the entire room width, eliminating harsh mechanical buffeting and air blast noise.
  • STC 29 Sound Transmission Rating: Acoustically insulated cabinet absorbs outdoor street noise and compressor vibration, ensuring uninterrupted sleep for hotel guests and senior living residents.

Integrated Eden EMS Wireless Connectivity & Anti-Tamper Security

  • Built-In 2.4 GHz RF Transceiver: Factory-equipped with internal RF antennas to link wirelessly out-of-the-box with Amana Eden occupancy thermostats (DS01G) and balcony door sensors (DD01E).
  • Mobile App Bluetooth Diagnostics: Service technicians can configure temperature setbacks, run diagnostic checks, and update firmware directly from the Amana mobile app without removing front cabinet panels.
  • Sleek Knobless Front Cabinet: Eliminates user-accessible buttons or dial knobs on the front cover, preventing guest tampering and forcing climate operation through central wall thermostats or property EMS rules.

Commercial Reliability & Corrosion Protection

  • 100% Factory Run-Tested: Every unit undergoes helium leak testing and full operational run-testing at Goodman Manufacturing's domestic assembly facility before warehouse dispatch.
  • Condensate Dispersion System: Slings excess cooling water directly onto the outdoor condenser coil, evaporating moisture into the outdoor airstream to boost cooling EER and minimize sleeve water runoff.

Factory-Installed 30A LCDI Power Cord: Includes NEMA 6-30P plug for fast 208/230V 30-Amp outlet connection.

30-Second Fan-Off Delay: Blows residual cool/warm air off the coils after compressor shutoff to maximize energy extraction.

Automatic Freeze Protection: Automatically triggers fan and electric heat if room temperatures drop below 40°F.

4-Minute Compressor Lock-In: Prevents short-cycling to extend refrigeration compressor service life.

Easy-Access Washable Filters: Top-pull dual nylon mesh filters (FK10K) allow 30-second maintenance cleaning.

Model SKU PTC093J50AXXXOfficial Amana J-Series Commercial PTAC
Nominal Cooling Capacity9,000 / 9,200 BTU Ideal for 300 to 525 sq. ft. guest rooms
Electric Heat Capacity5.0 kW (17,100 BTU @ 230V / 14,000 BTU @ 208V) Maximum output electric heat strip
Energy Efficiency Rating (EER)12.2 / 12.1 EER High-efficiency commercial cooling
Operating Voltage 208 / 230VAC, 1-Phase, 60 Hz Standard commercial line-voltage branch circuit
Receptacle / Plug Type NEMA 6-30P (LCDI Power Cord Included) Requires 30-Amp circuit breaker & 30A outlet
Cooling Amps / Watts 4.1 Amps / 805 Watts Low compressor operating current
Heating Amps / Watts 22.1 Amps ($230\text{V}$) / 5,070 Watts High-output 30A electric heat draw
Refrigerant TypeR-32 (Low-GWP Eco-Refrigerant) California Title 24 & AIM Act compliant
Acoustic Rating STC 29 (Sound Transmission Class)Whisper-quiet dual fan motor operation
Indoor Blower Airflow 290 CFM Uniform air throw across guest suites
Chassis Dimensions 42" Wide X 16-1/16" High x21-1/2" Deep Fits standard commercial 42" wall sleeves
Unit Weight / Shipping Weight 115 lbs / 123 lbs Palletized B2B freight shipping
Warranty Coverage 1-Yr Full / 2-5 Yr Functional & Sealed System Backed by Amana HVAC / Goodman Manufacturing

What's Included

  • Amana PTC093J50AXXX 9,000 BTU J-Series PTAC Chassis
  • Factory-Attached 30-Amp NEMA 6-30P LCDI Power Cord
  • Dual Washable Nylon Mesh Return Air Filters (FK10K)
  • Installation, Operations & Wireless Setup Guide
Required & Complementary Accessories

System Compatibility & Accessory Setup:

  • Wall Sleeve (Required for New Install): Amana WS900QW Standard 42" Insulated Metal Wall Sleeve
  • Exterior Grille (Required for New Install): Amana DGK1B Architectural Louvered Grille or SGK01B Stamped Aluminum Grille
  • Wireless Motion Thermostat (Required for Controls): Amana DS01G Wireless Occupancy Sensing Thermostat
  • Hardwired Wall Thermostat (Alternative): Amana PHWT-A150H Non-Programmable 2-Stage Wired Thermostat
  • Sub-Base Enclosure (Optional): Amana PTSB330QW / PTSB330BK 30A Electrical Sub-Base
  • Wireless Door Switch Sensor (Optional): Amana DD01E Wireless Door Sensor
  • Condensate Drain Kit (Optional): Amana PTDK01QW / TDK02QW Sleeve Drain Kit

coming soon

Frequently Asked Questions

Q1: What power cord and circuit breaker size does the Amana PTC093J50AXXX require? +

A: The PTC093J50AXXX comes factory-equipped with a 30-Amp NEMA 6-30P LCDI power cord. It requires a 208/230V, 30-Amp dedicated circuit breaker and matching NEMA 6-30R wall outlet or 30A electrical sub-base.

Q2: Does the Amana PTC093J50AXXX require a wall thermostat to operate? +

A: Yes. Modern Amana J-Series PTACs feature a sleek, knobless front cover without manual buttons to prevent guest tampering. Room controls require a wired thermostat (PHWT-A150H) or a 2.4 GHz wireless RF thermostat (DS01G / DSA02NO).

Q3: What is the heating output of the 5.0 kW electric heat strip? +

A: At 230V, the 5.0kW heater produces 17,100 BTU of heat output (22.1 Amps). At 208V, it produces 14,000 BTU of heat output (20.0Amps).

Q4: When should I choose the 5.0kW model over 2.5kW or 3.5kW models? +

A: Select the 5.0kW model (PTC093J50AXXX) for cold climate locations, mountain resorts, northern states, or corner rooms with large exterior window exposures where maximum electric heat recovery speed is necessary.

Q5: Is R-32 refrigerant legal in California and states with strict climate rules? +

A: Yes. R-32 refrigerant has a Global Warming Potential (GWP) of 677, making it fully compliant with California Air Resources Board (CARB) Title 24 regulations and federal AIM Act phase-down rules.
